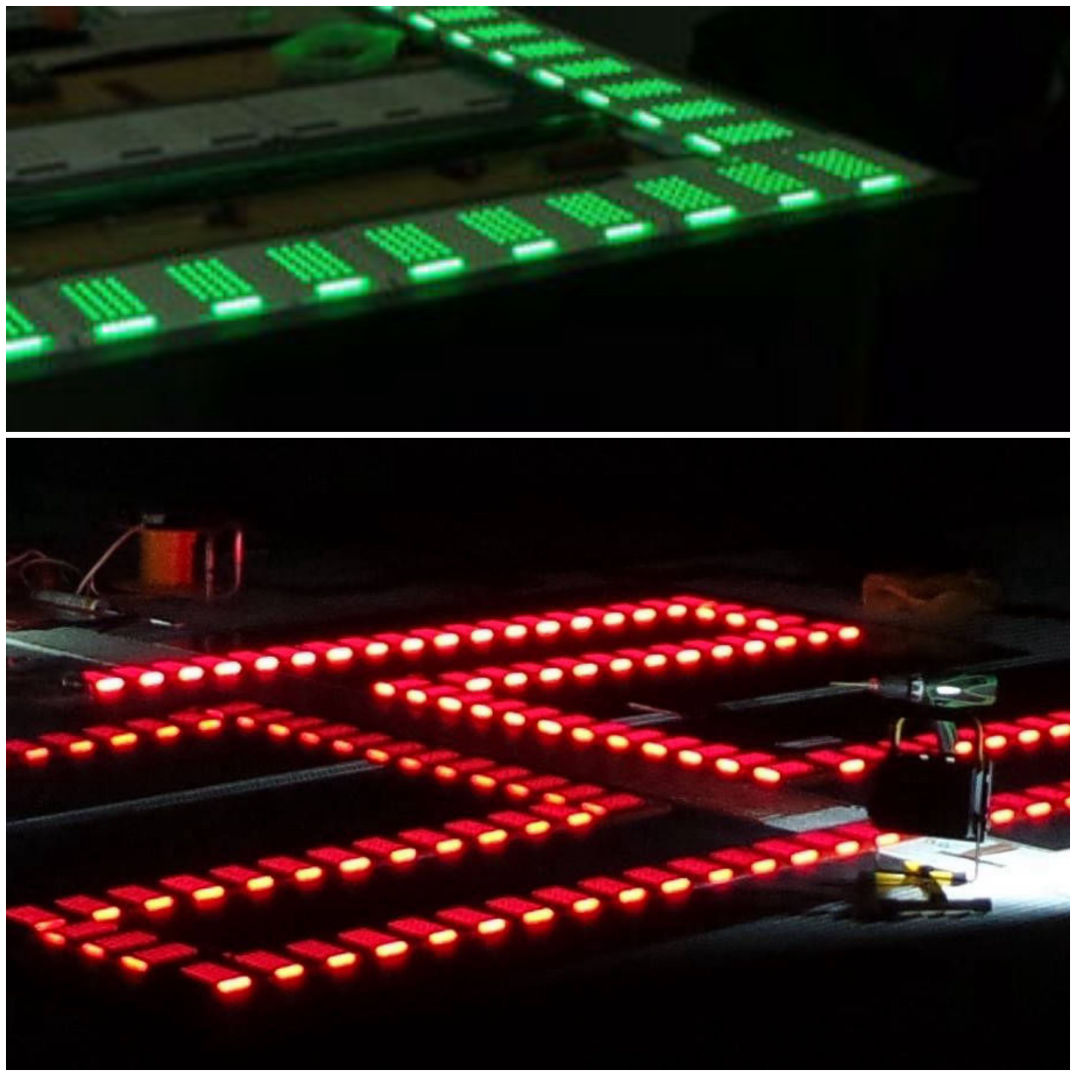

Helideck Surface Lighting

We have designs for outer circle, chevrons & a centre H
Our product is significantly less expensive than all approved competitors products and is also the FIRST to be fully compliant to the new regulations set by the CAA.

It is a modular design for ease of installation & maintenance, factory sealed LED lighting module with an Anti-Slip coating with surface friction >0.65u.

Suitable for both ground-level and elevated platforms due to our unique 'azimuth-visible' design.

Made from marine grade stainless steel and load tested to 331lb+ / per sq Inch


Specification details:
Conforms to - IP68/69 acc to IEC/EN 60529
Panel size - approx 300 x 150 and less than 8mm thickness overall
Under 500W power consumption subject to operational mode
Normal mode - 75mA/Panel @ 24vDC
Daylight mode - 180mA/Panel @ 24vDC
Dual UPS Supply 230/24vDC
2 Hour battery backup life
Tailor made control systems available
